our Fire Protection Pumps

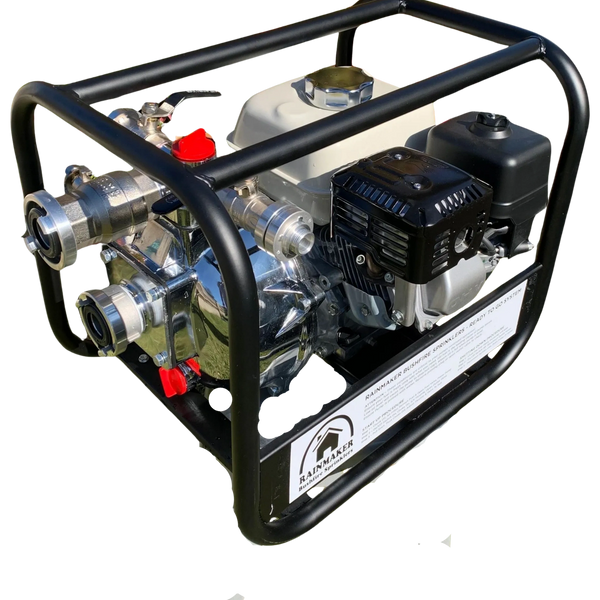

Heavy Duty Fire Fighter Pump
Ultra lite Ember Protector Pump
Ultra lite Ember Protector Pump
6.5HP GX200 Honda - Australia Assembled - Single Impeller
Actual Output - 320KPa @ 300LMP
Max Pressure - 735KPa / 75M Head
Max volume - 450LPM
Three-year warranty and assembled in Australia.
Weight- 26 kg

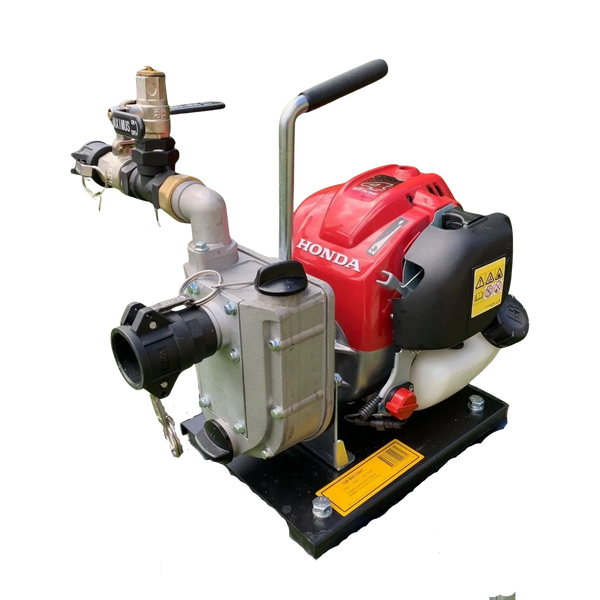

Ultra lite Ember Protector Pump
Ultra lite Ember Protector Pump
Ultra lite Ember Protector Pump
1.0HP GX25 Honda - Australia Assembled - Single Impeller
Actual Output - 235KPa @ 50LMP
Max Pressure - 295KPa / 30M Head
Max volume -125LPM
Three-year warranty and assembled in Australia.
Ultra Light weight at 6.5 kg
A Static Water Supply
Water Tank Material
How Many Tank Outlets do I need?
How Much Water per Rainmaker ?

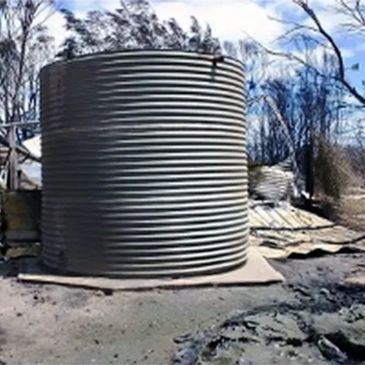

During tank testing the
304 Stainless water tanks survived fire contact for 30 minutes without failing, corrugated steel tanks maintained integrity but the plastic lining failed above 65' causing water loss, plastic tanks failed when exposed to direct flame. A drenching sprinkler can reduce the heat and increase your tanks resilience.
How Much Water per Rainmaker ?
How Many Tank Outlets do I need?
How Much Water per Rainmaker ?
Our sprinklers are designed with water efficiency in mind.
to work out the amount of water used simply multiply the Litres Per Minute of the sprinkler by how many you have, that will give you the system water usage per minute. We recommend having the capacity to supply your sprinklers for at least 1 hour, don't forget if you are on towns w
Our sprinklers are designed with water efficiency in mind.
to work out the amount of water used simply multiply the Litres Per Minute of the sprinkler by how many you have, that will give you the system water usage per minute. We recommend having the capacity to supply your sprinklers for at least 1 hour, don't forget if you are on towns water you can top up your tank as well as the water spraying onto the roof will circulate back to your tank if plumbed to do so.
How Many Tank Outlets do I need?
How Many Tank Outlets do I need?
How Many Tank Outlets do I need?

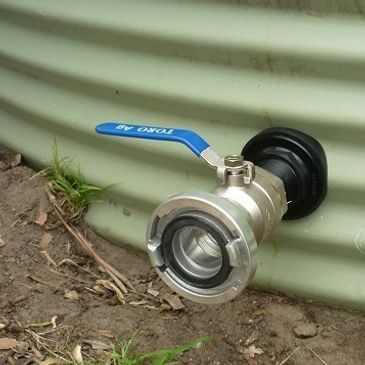

We recommend a dedicated 2 inch tank outlet to supply your fire fighting pump and a separate outlet for the fire services to draw water. This will avoid the need to interrupt the water supply to your fire protection system.
Suction Line Adapter
How Many Tank Outlets do I need?
How Many Tank Outlets do I need?
We offer three options for our fire pumps! The 2" Poly camlock includes a threaded camlock to screw into your water tanks shut off valve, If ordering a new tank ensure you get a 2 inch ball valve for fire protection. The Storz fitting connection will connect to the a RFS Storz 65 valve. the foot valve is best for a pool or dam.
Ordering our pump online
Pump Defender
Suction Hose and Fittings

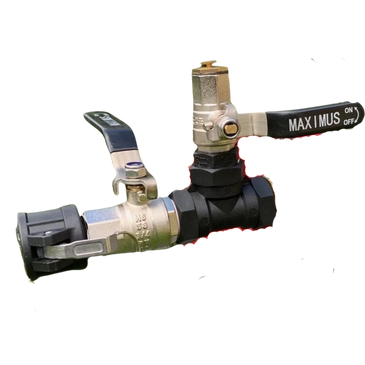

Pump Outlet Adapter
Your fire pump is the heart of your system and should be protected. Our Pump Defender is a adjustable spray, cooling the area This reduces the risk of fuel vaporization and the chances of vegetation ignition by the hot muffler.
Pump Outlet Adapter
Suction Hose and Fittings
Pump Outlet Adapter
Your pump should have 3 to 4 outlet ports.50/2", 40/1.5" or 25/1" are the common sizes.
Our range of adapters include a shut off valve to reduce or close off the water pressure to the nozzle/sprinkler if required. we offer 25 Storz, 25 Camlock, 20 Camlock adapters
Our RTG System uses 20 Poly Camlocks.

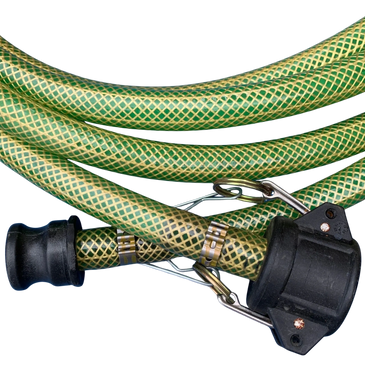

Suction Hose and Fittings
Suction Hose and Fittings
Suction Hose and Fittings
The size of your pumps suction port dictates the amount of water your pump can push, any restriction will reduce the output. Our GX200 pump can have either a 1 1/2" or 2" inlet, the 1 1/2" hose is easier to handle and store but we recommend using the 2" for max pump output. Four fitting sets are available, the foot valves are for drawin

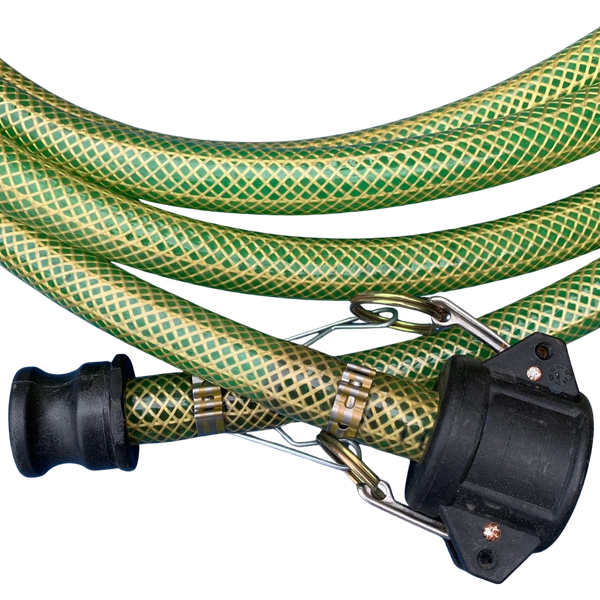

The size of your pumps suction port dictates the amount of water your pump can push, any restriction will reduce the output. Our GX200 pump can have either a 1 1/2" or 2" inlet, the 1 1/2" hose is easier to handle and store but we recommend using the 2" for max pump output. Four fitting sets are available, the foot valves are for drawing from a pool or dam, the camlock (pictured) is for a tank and the storz is to connect to the a tanks storz fitting.
Add a Rainmaker
Suction Hose and Fittings
Suction Hose and Fittings

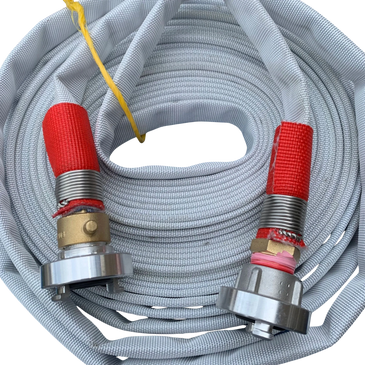

We carry PVC and lay flat canvas fire fighting hose.
- PVC 20 and 25 fire reel hose is avaiable in 20M & 36M lenghts as standard.
- 25mm Crusader lay flat hose range.
WATER DISTRIBUTION CIRCUIT
Hose Connector
Hose Size to your Sprinklers
Hose Connector

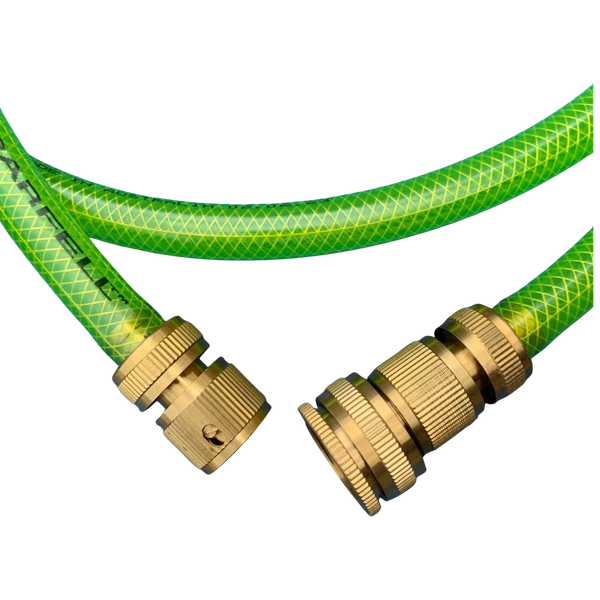

The connectors you choose should be based on purpose and budget. We use Poly Camlocks as our go to as they are durable and offer value when compared to other options. Brass Garden connectors are common and allow the use of already purchased equipment. German made Forged Aluminium Storz connectors are used by Australian Fire Services for
The connectors you choose should be based on purpose and budget. We use Poly Camlocks as our go to as they are durable and offer value when compared to other options. Brass Garden connectors are common and allow the use of already purchased equipment. German made Forged Aluminium Storz connectors are used by Australian Fire Services for a reason, they are durable and the best choice for use in heavy conditions, they are the most expensive option that we offer.
Hose Material
Hose Size to your Sprinklers
Hose Connector
We use heavy duty PVC garden hose for most of our kits, the hose is durable and affordable. The spray from the sprinkler cools the outside and the water flow cools the inside of the hose protecting it from hot embers. We also use the Australian Made "Crusader Sabre" percolating lay flat rot resistant canvas hoses for our kits and recomme
We use heavy duty PVC garden hose for most of our kits, the hose is durable and affordable. The spray from the sprinkler cools the outside and the water flow cools the inside of the hose protecting it from hot embers. We also use the Australian Made "Crusader Sabre" percolating lay flat rot resistant canvas hoses for our kits and recommend this hose for fire nozzles as the hose weeps water to protect the hose from heat and flames, these hoses are used by the fire services.
Hose Diameter
Hose Size to your Sprinklers
Hose Size to your Sprinklers
The hose diameters most common in fire protection systems are 25/1" and 20/0.75", these are readily available and are easily deployed and aren't overly heavy to drag around.We use and recommend 12/0.5" and 20/0.75 PVC Garden hose with our sprinklers as once set up there is little need to move them.
The volume and pressure of water r
The hose diameters most common in fire protection systems are 25/1" and 20/0.75", these are readily available and are easily deployed and aren't overly heavy to drag around.We use and recommend 12/0.5" and 20/0.75 PVC Garden hose with our sprinklers as once set up there is little need to move them.
The volume and pressure of water required dictates the hose diameter. The longer lengths of hose should be larger diameter due to pressure loose by friction in the hose.
Hose Size to your Sprinklers
Hose Size to your Sprinklers
Hose Size to your Sprinklers
Minimum hose diameter, pump to splitter
- Drenchers needs a 12 hose.
- Soakers need a 20 hose.
- Saturators need a 25 hose.
Minimum hose diameter, splitter to sprinkler
- Drencher = 12mm hose.
- Soakers = 12mm hose
- Saturator = 20mm hose
